電動暗板刀型閘閥安裝尺寸以及外形圖

發布時間:2016-05-30 11:31 已被瀏覽 次
產品概述
此刀形閘閥是閘閥中的新品種,體積小,重量輕,輕型節材,是污水、煤漿、糖漿、泥漿、空氣、渣水混合物、供水、造紙、礦山等行業中的理想產品。
暗板刀型閘閥采用金屬對金屬的硬密封,或采用金屬對橡膠的軟密封。在開啟和關閉的過程中,閘板與密封面采用了特殊的設計,摩擦較少,經久耐用。
此種刀形閘的上密封突破了常規的密封形式,采用上蓋結構,使得上密封由大面積的矩形密封改成了小面積的圓周密封,密封性能大大提高。在圓周密封的基礎上,又采用了目前國際上先進的浮動密封結構,使得上密封達到了與管道同壽命的程度,從而整體上提高了閥門的使用壽命。
此種閘閥在手輪頂部加裝封套裝置后,可以使閥門活動部件全部處于封閉狀態,閘板和閥桿的絲桿傳動不會因潤滑油干枯而卡澀。特別適合在粉塵及干燥的惡劣環境中長期正常工作。
注:可根據使用單位的環境和要求來設計與生產,適合用戶的安裝和使用。
電動暗板刀型閘閥驅動部分采用多回轉電動裝置,用以驅動和控制閥門的開啟和關閉,操作人員可以在控制室內遠距離對閥門進行控制也可以現場手動操作,也可以與計算機配合實現計算機自動控制。廣泛應用于排水、供熱、電站、化工、食品、造紙、制藥、煤碳、采礦等工程,滿足了現代工、農業自動化要求。
技術參數范圍
公稱壓力:0.6MPa、1.0MPa、1.6MPa、2.5MPa、150LB
公稱通徑:DN50mm~DN2000mm NPS 2"~80"
適用溫度:-38℃~1100℃(具體溫度范圍視密封副材質和介質性質而定)
連接法蘭:ANSI B16.5、GB/T9113、JB/T79、HG、SH、JIS、DIN、NF、BS
主體材料:C.I、WCB、ZG1Cr18Ni9Ti、ZG1Cr18Ni12Mo2Ti、CF8、CF8M、CF3、CF3M、2Cr25Ni20
密封形式:硬密封、軟密封
泄 漏 量:硬密封:D級(液體0.1×DNmm3/s);軟密封:A級(零泄漏)
配套附件:安裝法蘭
電動裝置參數
1、電源:AC380V、50HZ
2、標準型:標準型產品具有防塵、防雨水的外殼 保護能力、保護等級IP65,可直接用于戶外
3、防水型:產品具有防塵、防浸水(IP67)的外殼防護等級
4、防爆型(EX):防爆等為DⅡ BT4/DⅡ CT4(不含乙炔)
5、環境溫度:-20℃~40℃
6、可選:配電氣控制器
產品特性
1、啟閉迅速,平衡可靠,自動化程度高
2、安裝高度及位置不受限制
3、采用防爆型電動裝置,在易燃易爆,甚至有毒氣體環境中可以正常工作
4、配有手動,萬一供電間斷,可以手動操作開啟或關閉閥門,有效控制介質,防止事故發生
Product introduction
This knife gate valve is a new generation gate valve characteristic of small construction, low weight, and high material utilization. It is an ideal product for such sectors including sewage disposal, coal slurry, syrup, sludge, air, slag-water mix, water supply, papermaking, mining, etc.
The knife gate valve adopts metal-to-metal hard sealing or metal-to-rubber soft sealing. In the processing of valve switching on/off, the gate plate and sealing face are provided with special design, featuring limited friction and high durability.
The sealing of the knife gate valve represents a breakthrough in traditional sealing form. Upper cap structure changes large area rectangular sealing face of the upper sealing to small area circular sealing, with much enhanced sealing performance. Based on circular sealing, the valve is further provided with latest floating sealing construction in the world. Thus the upper sealing shares the same useful life with pipeline, so the overall useful life of the valve increases.
After envelope is added to the top of hand wheel, all the moving parts of the gate valve will be enclosed. Therefore, the rotation of lead screws between gate plate and stem will not block because of short supply of lubricating oil. In particular, the valve is applicable for long-term service in severely dusty and dry environment.
Note: The valve could be designed and manufactured based on client's site conditions and requirements for better installation and application.
The driving part of the product is a multi-revolving electric device for driving the valve and controlling on/off of the valve. Operator could control valve remotely in control room as well as run the valve manually on site. Automatic control is available as well by linking to computer. The product is now widely used in such sectors including drainage, heating, electricity generation, chemical industry, foodstuff, papermaking, pharmaceutical, coal mining, mining, etc., satisfying the needs of automation in modern industry and modern agriculture.
Technical Parameter Range
Nominal pressure:0.6MPa、1.0MPa、1.6MPa、2.5MPa、150LB
Nominal diameter:DN50mm~DN2000mm NPS 2"~80"
Suitable temperature:-38℃~1100℃(Range of temperature subject to the material of sealing and property of medium)
Flange drilling:ANSI B16.5、GB/T9113、JB/T79、HG、SH、JIS、DIN、NF、BS
Main materials:C.I、WCB、ZG1Cr18Ni9Ti、ZG1Cr18Ni12Mo2Ti、CF8、CF8M、CF3、CF3M、2Cr25Ni20
Seal type:Stainless steel hard seal、Teflon soft seal
Leakage:Stainless steel hard seal:Grade D(Liquid0.1×DNmm3/s)、Teflon soft seal:Grade A(Zero Leakage)
Accessories:Flange
Electric device parameters
Power supply: AC380AV, 50HZ.
Standard type: Standard type is equipped with dust-resistant, rain-proof casing. The protective level is IP65. It could be used directly outdoors.
Waterproof type: The casing is resistant to dust and water immersion (IP67 protective level).
Explosion-proof type (EX) DII BT4/DII CT4 explosion-proof level (excluding acetylene).
Ambient temperature: -20~40°C.
Optional: electrical controller
Optional accessories
1、Quick switching on/off, reliability, equilibrium, high level of automation.
2、Unlimited installation height and position.
3、Explosion-proof electric device that allows normal operation in inflammable and explosive environment or environment with poisonous gas.
4、Manual operating mechanism allowing manual switching on/off of the valve in case of power failure. The medium will be controlled effectively for prevention against accident.

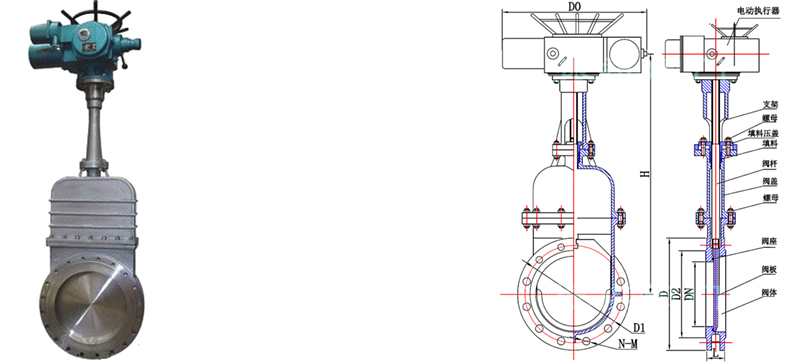

主要外形及連接尺寸Profile and connection dimension
單位Unit:mm
PN DN L D D1 D2 H N-M PN DN L D D1 D2 H N-M
0.6 150 57 280 240 210 980 8-20 1.0 150 57 285 240 210 980 8-20
200 70 335 295 265 1055 8-20 200 70 340 295 265 1055 12-20
250 70 390 350 320 1060 12-20 250 70 405 355 310 1060 12-22
300 76 440 400 368 1230 12-20 300 76 460 410 375 1230 12-22
350 76 500 460 428 1250 16-20 350 76 520 470 435 1250 16-22
400 89 565 515 482 1767 16-22 400 89 580 525 485 1767 16-27
450 89 615 565 532 1920 20-22 450 89 640 585 545 1920 20-27
500 114 670 620 585 2010 20-22 500 114 715 650 609 2010 20-30
600 114 780 725 685 2110 20-27 600 114 840 770 720 2110 20-36
700 130 895 840 800 2400 24-27 700 130 910 840 788 2400 24-36
800 130 1010 950 898 2800 24-30 800 130 1025 950 895 2800 24-36
900 140 1110 1050 1005 3000 28-30 900 140 1125 1050 998 3000 28-36
1000 216 1220 1160 1115 3400 28-30 1000 216 1255 1170 1110 3400 28-42
1200 254 1450 1380 1325 3900 32-36 1200 254 1485 1390 1325 3900 32-48
