傘齒輪暗板刀型閘閥安裝尺寸以及外形圖

發布時間:2016-05-30 11:29 已被瀏覽 次
產品概述
此刀形閘閥是閘閥中的新品種,體積小,重量輕,輕型節材,是污水、煤漿、糖漿、泥漿、空氣、渣水混合物、供水、造紙、礦山等行業中的理想產品。
暗板刀型閘閥采用金屬對金屬的硬密封,或采用金屬對橡膠的軟密封。在開啟和關閉的過程中,閘板與密封面采用了特殊的設計,摩擦較少,經久耐用。
此種刀形閘的上密封突破了常規的密封形式,采用上蓋結構,使得上密封由大面積的矩形密封改成了小面積的圓周密封,密封性能大大提高。在圓周密封的基礎上,又采用了目前國際上先進的浮動密封結構,使得上密封達到了與管道同壽命的程度,從而整體上提高了閥門的使用壽命。
此種閘閥在手輪頂部加裝封套裝置后,可以使閥門活動部件全部處于封閉狀態,閘板和閥桿的絲桿傳動不會因潤滑油干枯而卡澀。特別適合在粉塵及干燥的惡劣環境中長期正常工作。
注:可根據使用單位的環境和要求來設計與生產,適合用戶的安裝和使用。
傘齒輪暗板刀型閘閥傘齒輪的齒形是圓弧形狀,而且一般都是呈錐狀,像傘形,故名傘齒輪。傘齒輪傳動效率高,傳動比穩定,圓弧重疊系數大,承載能力高,傳動平穩平順,工作可靠,結構緊湊,節能省料,節省空間,耐磨損,壽命長,噪音小。
技術參數范圍
公稱壓力:0.6MPa、1.0MPa、1.6MPa、2.5MPa、150LB
公稱通徑:DN50mm~DN2000mm NPS 2"~80"
適用溫度:-38℃~1100℃(具體溫度范圍視密封副材質和介質性質而定)
連接法蘭:ANSI B16.5、GB/T9113、JB/T79、HG、SH、JIS、DIN、NF、BS
主體材料:C.I、WCB、ZG1Cr18Ni9Ti、ZG1Cr18Ni12Mo2Ti、CF8、CF8M、CF3、CF3M、2Cr25Ni20
密封形式:硬密封、軟密封
泄 漏 量:硬密封:D級(液體0.1×DNmm3/s);軟密封:A級(零泄漏)
配套附件:安裝法蘭
Product introduction
This knife gate valve is a new generation gate valve characteristic of small construction, low weight, and high material utilization. It is an ideal product for such sectors including sewage disposal, coal slurry, syrup, sludge, air, slag-water mix, water supply, papermaking, mining, etc.
The knife gate valve adopts metal-to-metal hard sealing or metal-to-rubber soft sealing. In the processing of valve switching on/off, the gate plate and sealing face are provided with special design, featuring limited friction and high durability.
The sealing of the knife gate valve represents a breakthrough in traditional sealing form. Upper cap structure changes large area rectangular sealing face of the upper sealing to small area circular sealing, with much enhanced sealing performance. Based on circular sealing, the valve is further provided with latest floating sealing construction in the world. Thus the upper sealing shares the same useful life with pipeline, so the overall useful life of the valve increases.
After envelope is added to the top of hand wheel, all the moving parts of the gate valve will be enclosed. Therefore, the rotation of lead screws between gate plate and stem will not block because of short supply of lubricating oil. In particular, the valve is applicable for long-term service in severely dusty and dry environment.
Note: The valve could be designed and manufactured based on client's site conditions and requirements for better installation and application.
Bevel gear lidded knife gate valve of bevel gear tooth profile is arc shape, and are generally not cone shaped like a umbrella, therefore bevel gear. Bevel gear drive with high efficiency, stable transmission ratio, arc overlap coefficient is big, high bearing capacity, stable transmission smooth, reliable operation, compact structure, and energy saving material, saving space, wear resistance, long life and low noise.
Technical Parameter Range
Nominal pressure:0.6MPa、1.0MPa、1.6MPa、2.5MPa、150LB
Nominal diameter:DN50mm~DN2000mm NPS 2"~80"
Suitable temperature:-38℃~1100℃(Range of temperature subject to the material of sealing and property of medium)
Flange drilling:ANSI B16.5、GB/T9113、JB/T79、HG、SH、JIS、DIN、NF、BS
Main materials:C.I、WCB、ZG1Cr18Ni9Ti、ZG1Cr18Ni12Mo2Ti、CF8、CF8M、CF3、CF3M、2Cr25Ni20
Seal type:Stainless steel hard seal、Teflon soft seal
Leakage:Stainless steel hard seal:Grade D(Liquid0.1×DNmm3/s)、Teflon soft seal:Grade A(Zero Leakage)
Accessories:Flange

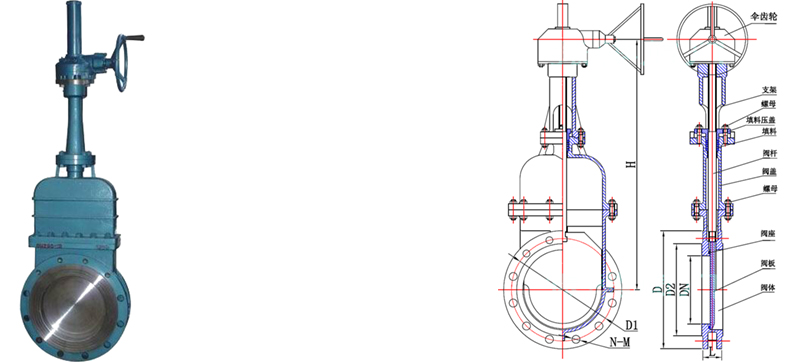

主要外形及連接尺寸Profile and connection dimension
單位Unit:mm
PN DN L D D1 D2 H N-M PN DN L D D1 D2 H N-M
0.6 50 48 160 125 100 370 4-16 1.0 50 48 160 125 99 370 4-16
65 48 180 145 120 400 4-16 65 48 185 145 120 400 4-16
80 50 195 160 135 440 4-16 80 50 200 160 135 440 8-16
100 50 215 180 155 510 8-16 100 50 220 180 155 510 8-16
125 57 245 210 185 580 8-16 125 57 250 210 185 580 8-16
150 57 280 240 210 690 8-20 150 57 285 240 210 690 8-20
200 70 335 295 265 800 8-20 200 70 340 295 265 800 12-20
250 70 390 350 320 960 12-20 250 70 405 355 310 960 12-22
300 76 440 400 368 1200 12-20 300 76 460 410 375 1200 12-22
350 76 500 460 428 1360 16-20 350 76 520 470 435 1360 16-22
400 89 565 515 482 1550 16-22 400 89 580 525 485 1550 16-27
450 89 615 565 532 1700 20-22 450 89 640 585 545 1700 20-27
500 114 670 620 585 1900 20-22 500 114 715 650 609 1900 20-30
600 114 780 725 685 2400 20-27 600 114 840 770 720 2400 20-36
700 130 895 840 800 2600 24-27 700 130 910 840 788 2600 24-36
800 130 1010 950 898 2700 24-30 800 130 1025 950 895 2700 24-36
900 140 1110 1050 1005 3100 28-30 900 140 1125 1050 998 3100 28-36
1000 216 1220 1160 1115 3600 28-30 1000 216 1255 1170 1110 3600 28-42
1200 254 1450 1380 1325 4300 32-36 1200 254 1485 1390 1325 4300 32-48
