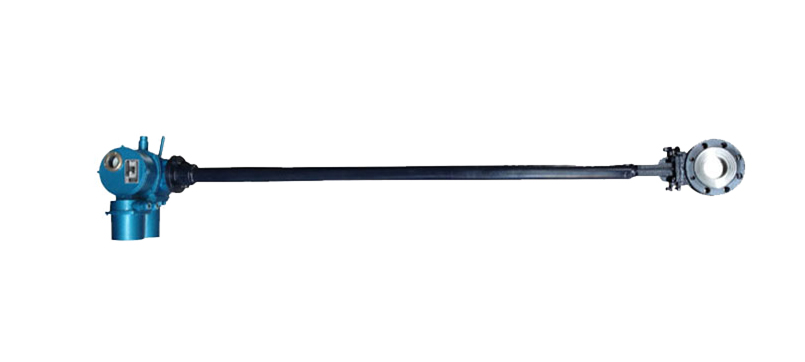

加長桿電動刀型閘閥安裝尺寸以及外形圖

產品概述
該產品驅動部分采用多回轉電動裝置，用以驅動和控制閥門的開啟和關閉，操作人員可以在控制室內遠距離對閥門進行控制也可以現場手動操作，也可以與計算機配合實現計算機自動控制。廣泛應用于排水、供熱、電站、化工、食品、造紙、制藥、煤碳、采礦等工程，滿足了現代工、農業自動化要求。
技術參數范圍
公稱壓力：0.6MPa、1.0MPa、1.6MPa、2.5MPa、150LB
公稱通徑：DN50mm~DN2000mm NPS 2"~80"
適用溫度：-38℃~1100℃（具體溫度范圍視密封副材質和介質性質而定）
連接法蘭：ANSI B16.5、GB/T9113、JB/T79、HG、SH、JIS、DIN、NF、BS
主體材料：C.I、WCB、ZG1Cr18Ni9Ti、ZG1Cr18Ni12Mo2Ti、CF8、CF8M、CF3、CF3M、2Cr25Ni20
密封形式：硬密封、軟密封
泄 漏 量：硬密封：D級（液體0.1×DNmm3/s）；軟密封：A級（零泄漏）
配套附件：安裝法蘭
電動裝置參數
1、電源：AC380V、50HZ
2、標準型：標準型產品具有防塵、防雨水的外殼 保護能力、保護等級IP65，可直接用于戶外
3、防水型：產品具有防塵、防浸水（IP67）的外殼防護等級
4、防爆型（EX）：防爆等為DⅡ BT4/DⅡ CT4（不含乙炔）
5、環境溫度：-20℃~40℃
6、可選：配電氣控制器
產品特性
1、啟閉迅速，平衡可靠，自動化程度高
2、安裝高度及位置不受限制
3、采用防爆型電動裝置，在易燃易爆，甚至有毒氣體環境中可以正常工作
4、配有手動，萬一供電間斷，可以手動操作開啟或關閉閥門，有效控制介質，防止事故發生
Product introduction
The driving part adopts multi-turn electric device, is used to drive and control the opening and closing of the valve, operators can to control the valve in the control room distance can also be the scene manual operation, can also cooperate with computer to realize computer automatic control. Widely used in the drainage, heat supply, power stations, chemical industry, food, paper, pharmaceutical, coal, mining and other engineering, meet the requirement of modern industry and agriculture automation.
Technical Parameter Range
Nominal pressure:0.6MPa、1.0MPa、1.6MPa、2.5MPa、150LB
Nominal diameter:DN50mm~DN2000mm NPS 2"~80"
Suitable temperature:-38℃~1100℃（Range of temperature subject to the material of sealing and property of medium）
Flange drilling:ANSI B16.5、GB/T9113、JB/T79、HG、SH、JIS、DIN、NF、BS
Main materials:C.I、WCB、ZG1Cr18Ni9Ti、ZG1Cr18Ni12Mo2Ti、CF8、CF8M、CF3、CF3M、2Cr25Ni20
Seal type:Stainless steel hard seal、Teflon soft seal
Leakage:Stainless steel hard seal:Grade D(Liquid0.1×DNmm3/s)、Teflon soft seal:Grade A(Zero Leakage)
Accessories:Flange
Electric device parameters
Power supply: AC380AV, 50HZ.
Standard type: Standard type is equipped with dust-resistant, rain-proof casing. The protective level is IP65. It could be used directly outdoors.
Waterproof type: The casing is resistant to dust and water immersion (IP67 protective level).
Explosion-proof type (EX) DII BT4/DII CT4 explosion-proof level (excluding acetylene).
Ambient temperature: -20~40°C.
Optional: electrical controller
Optional accessories
1、Quick switching on/off, reliability, equilibrium, high level of automation.
2、Unlimited installation height and position.
3、Explosion-proof electric device that allows normal operation in inflammable and explosive environment or environment with poisonous gas.
4、Manual operating mechanism allowing manual switching on/off of the valve in case of power failure. The medium will be controlled effectively for prevention against accident.

主要外形及連接尺寸Profile and connection dimension					單位Unit:mm
公稱通徑DN	50	65	80	100	125	150	200
高度Height	375	460	590	780	950	980	1055
公稱通徑DN	250	300	350	400	450	500	600
高度Height	1060	1230	1250	1767	1920	2010	2110
