液動刀型閘閥安裝尺寸以及外形圖

發布時間:2016-05-30 11:25 已被瀏覽 次
液動刀型閘閥產品概述
液動刀型閘閥,又稱刀閘閥或刀型漿閘閥。其應用范圍非常廣泛,從礦山、電廠的選煤、排矸、排渣,到城市的污水處理;從水泥、造紙廠的漿液輸送,到食品、衛生、醫藥等專業管道。超薄設計的液動刀型閘閥以其體積小、重量輕、阻流小、不積渣,易安裝,易拆卸的優點徹底解決了普通閘閥、平板閘閥、球閥、截止閥、調節閥、蝶閥等閥門的阻流大,占空間,易積渣,不易安裝和維修等疑難問題。因而大量的通用切斷類閥和調節型閥門被刀型閘閥取代。
產品概述
液動刀型閘閥以液壓油為動力完成執行動作的一種執行器,其操作原理驅動液壓泵把液壓油通過換向閥壓入液壓缸的上下腔來帶動活塞桿做上下動作,從而帶動閘板的啟閉來達到閥門開關作用。
技術參數范圍
公稱壓力:0.6MPa、1.0MPa、1.6MPa、2.5MPa、150LB
公稱通徑:DN50mm~DN2000mm NPS 2"~80"
適用溫度:-38℃~1100℃(具體溫度范圍視密封副材質和介質性質而定)
連接法蘭:ANSI B16.5、GB/T9113、JB/T79、HG、SH、JIS、DIN、NF、BS
主體材料:C.I、WCB、ZG1Cr18Ni9Ti、ZG1Cr18Ni12Mo2Ti、CF8、CF8M、CF3、CF3M、2Cr25Ni20
密封形式:硬密封、軟密封
泄 漏 量:硬密封:D級(液體0.1×DNmm3/s);軟密封:A級(零泄漏)
配套附件:安裝法蘭
液動執行器的優點
1、輸出推動力要高于氣動執行器和電動執行器,且液動執行器的輸出力矩可以根據要求進行精確的調整,并將其通過液壓儀表反應出來。
2、傳動更為平穩可靠,有緩沖無撞擊現象,適用于對傳動要求較高的工作環境。
3、調節精度高、響應速度快,能實現高精確度控制。
4、使用液壓油驅動,液體本身有不可壓縮的特性,因此液壓執行器能輕易獲得較好的抗偏離能力。
5、本身配備有蓄能器,在發生動力故障時,可以進行一次以上的執行操作,減少緊急情況對生產系統造成的破壞和影響,特別適用于長輸送管路自動控制。
6、使用液壓方式驅動,由于在操作過程中不會出現電動設備常見的打火現象,因此防爆性能要高于電動執行器。
Knife Gate Valve Product Introduction
Type knife gate valve, also known as the knife gate valve or knife gate valve type pulp. Its application scope is very broad, from coal mines, power plants, slag discharge, discharging the gangue, the city sewage treatment; From the cement slurry transportation, paper mills, to food, health, medicine and other professional pipeline. Ultra-thin design type knife gate valve with its small volume, light weight, small flow resistance, no slag, easy to install, easy to remove completely solve the advantages of the common gate valve, flat gate valve, ball valve, globe valve, regulating valve, butterfly valve, choke valve, occupy a space, easy slag deposition, not easy to install and maintenance problems. So a lot of general cut off valve and external regulation valve replaced by type knife gate valve.
Product Introduction
Hydraulic kinfe gate valve powered by hydraulic oil to complete the action of an actuator, its operating principle of driving hydraulic pump by reversing valve of the hydraulic oil pressure into the hydraulic cylinder on inferior vena to drive the piston rod moves up and down, thereby giving impetus to the opening and closing of the damper to achieve the valve switch.
Technical Parameter Range
Nominal pressure:0.6MPa、1.0MPa、1.6MPa、2.5MPa、150LB
Nominal diameter:DN50mm~DN2000mm NPS 2"~80"
Suitable temperature:-38℃~1100℃(Range of temperature subject to the material of sealing and property of medium)
Flange drilling:ANSI B16.5、GB/T9113、JB/T79、HG、SH、JIS、DIN、NF、BS
Main materials:C.I、WCB、ZG1Cr18Ni9Ti、ZG1Cr18Ni12Mo2Ti、CF8、CF8M、CF3、CF3M、2Cr25Ni20
Seal type:Stainless steel hard seal、Teflon soft seal
Leakage:Stainless steel hard seal:Grade D(Liquid0.1×DNmm3/s)、Teflon soft seal:Grade A(Zero Leakage)
Accessories:Flange
The advantages of hydraulic actuators
1、Output driver than pneumatic actuators and electric actuators, and hydraulic actuator output torque can be accurately adjusted according to the requirement, and through hydraulic pressure instrument.
2、Transmission is more stable and reliable, with buffer without collision phenomenon, suitable for transmission demanding work environment.
3、Adjustment of high precision, fast response speed, can realize high precision control.
4、Using hydraulic drive, has the property of incompressible fluid itself, so the hydraulic actuator can easily obtain a better ability to resist deviation.
5、Equipped with accumulator itself, in the event of a power failure, can be more than one performs operations, reduce the emergency damage and impact on production system, especially suitable for long transmission pipeline automatic control.
6、Use hydraulic drive, because will not appear in the process of operation of electric equipment of the common phenomenon of flint, therefore explosion-proof performance than the electric actuator.

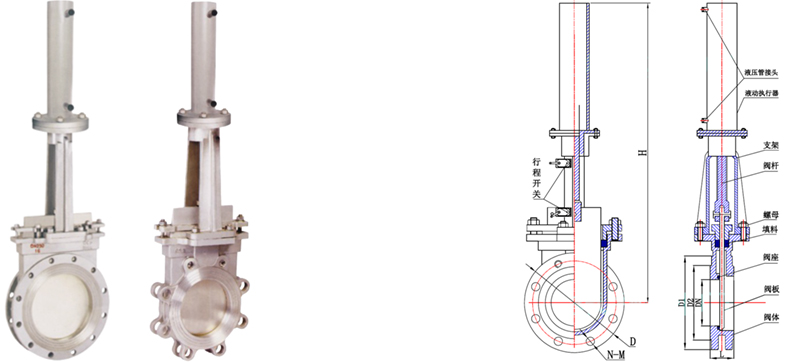

主要外形及連接尺寸Profile and connection dimension
單位Unit:mm
PN DN L D D1 D2 H N-M PN DN L D D1 D2 H N-M
0.6 50 48 160 125 100 302 4-16 1.0 50 48 160 125 99 302 4-16
65 48 180 145 120 317 4-16 65 48 185 145 120 317 4-16
80 50 195 160 135 340 4-16 80 50 200 160 135 340 8-16
100 50 215 180 155 378 8-16 100 50 220 180 155 378 8-16
125 57 245 210 185 430 8-16 125 57 250 210 185 430 8-16
150 57 280 240 210 528 8-20 150 57 285 240 210 528 8-20
200 70 335 295 265 620 8-20 200 70 340 295 265 620 12-20
250 70 390 350 320 771 12-20 250 70 405 355 310 771 12-22
300 76 440 400 368 875 12-20 300 76 460 410 375 875 12-22
350 76 500 460 428 982 16-20 350 76 520 470 435 982 16-22
400 89 565 515 482 1245 16-22 400 89 580 525 485 1245 16-27
450 89 615 565 532 1338 20-22 450 89 640 585 545 1338 20-27
500 114 670 620 585 1465 20-22 500 114 715 650 609 1465 20-30
600 114 780 725 685 1658 20-27 600 114 840 770 720 1658 20-36
700 130 895 840 800 1900 24-27 700 130 910 840 788 1900 24-36
800 130 1010 950 898 2400 24-30 800 130 1025 950 895 2400 24-36
900 140 1110 1050 1005 2800 28-30 900 140 1125 1050 998 2800 28-36
1000 216 1220 1160 1115 3000 28-30 1000 216 1255 1170 1110 3000 28-42
1200 254 1450 1380 1325 3600 32-36 1200 254 1485 1390 1325 3600 32-48
